YHZM35 Drum Mobile Concrete Batching Plant
CATEGORY AND TAGS:Mobile Concrete Batching Plants jzm750 mobile concrete batching plant, yhzm35 drum mobile concrete batching plant
- Model: YHZM35
- Theory Capacity: 35m³/h
- Dimension(L * W * H): 8m X 2.2m X3.8m
- Model of Mixer: JZM750
- Mixing Motor: 2*7.5kw
- Aggregate bin volume: 6m³×2
- Discharging height: 1.6m
- Specifications
- Structure&Drawing
- Cases
- Video

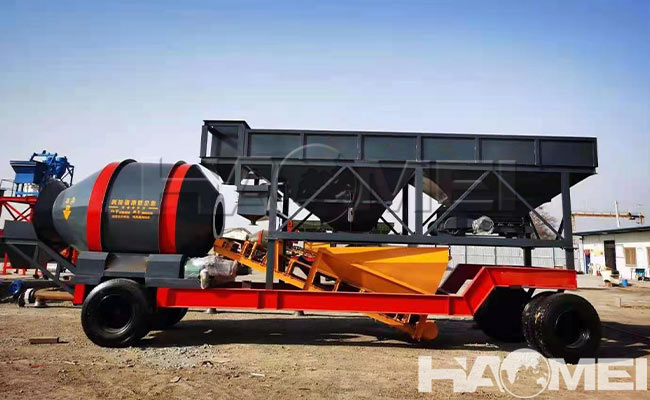

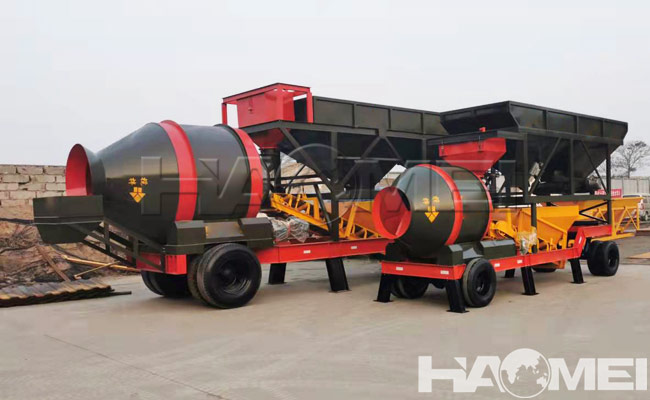

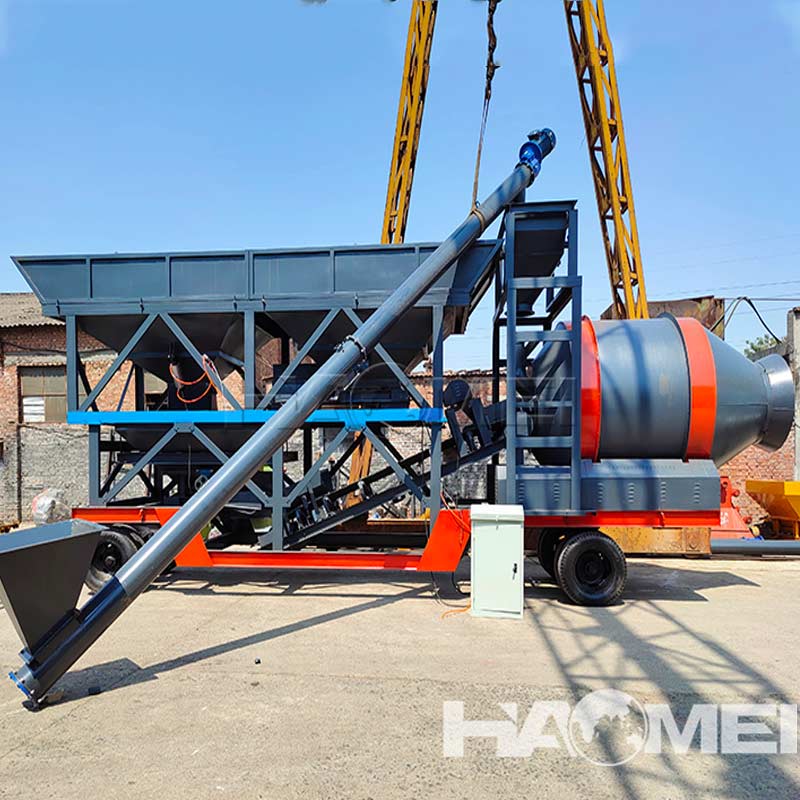

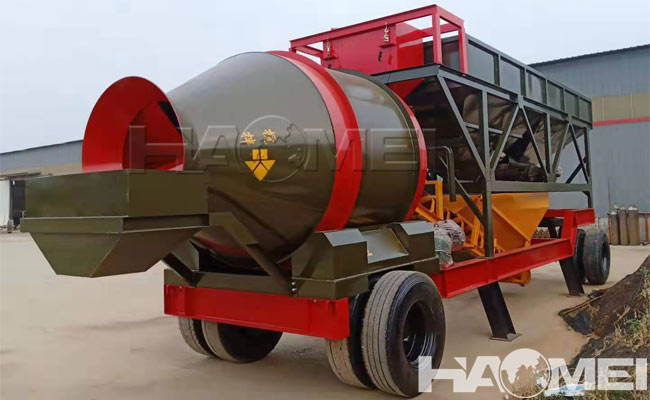

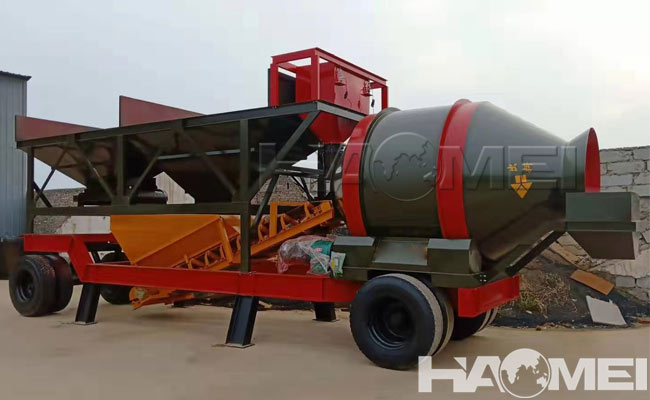

YHZM series drum mobile concrete batching plant is a new type portable concrete plant with drum type concrete mixer adapt to the fast installation and movement. It is designed and manufactured by our factory based on the practical construction projects. The whole design is with convenient installation, stable and reliable operation convenient transportation. It has the advantages of flexible movement, quick and easy assembly and disassembly, and stable performance. It is the preferred choice for field construction projects such as railways, highways, ports, bridges and hydropower projects.
General Parameters
| Model | YHZM35 | |
| Capacity | 35m3/h | |
| Concrete mixer | JZM750 | |
| Cycle time | 1.5 minutes | |
| Weighing accuracy | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| additive | ±1% | |
Features of JZM Series Mobile Concrete Batching Plant：
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don’t need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
Detailed specification
- Concrete mixer
| Name | Specification |
| Model | JZM750 drum mixer |
| Capacity | 0.75m3/batch |
| Motor power | 5.5kw*2 |
| Mixing time | 40s |
| Discharging height | 1300mm; If using concrete transit mixer to collect concrete，we can make a slope with the height of 3000mm to enable it to collect concrete. |
- Aggregate batcher
| Name | Specification |
| Model | PLD1200 |
| Volume of storage bin | 4.5m3*3pcs |
| Weighing sensor | 1000kg*2pcs |
| Cylinder | 100*250*1pcs |
| Motor power | 4kw*3pcs |
| Belt conveyor size | 500*10530mm*1 ,600*8450mm*1,500*4230mm*1 |
| Loading height | 3100mm |
| Thickness of storage bin steel plate | 3mm |
3. Scales
| Name | Specification | |
| Cement scale | Volume of cement storage bin | 0.6m3 |
| Weighing accuracy | +/-1% | |
| Sensor | 500kg*3pcs | |
| Water scale | Volume of water storage bin | 0.4m3 |
| Weighing accuracy | +/-1% | |
| Sensor | 300kg*3 | |
| Water pump power | 1.5kw | |
| Additive scale | Volume of additive storage bin | 0.05m3 |
| Weighing accuracy | +/-1% | |
| Sensor | 50kg*1 | |
| Additive pump power | 1.1kw | |
- Cement debagger
| Name | Specification |
| Cement Hopper | 1 |
| Screw Conveyor | Φ219 |
- Chassis
| Name | Specification |
| Qty. | 1 pcs |
| Size | 11100mm*2000mm*780mm |
| Tyre model | 1000mm |
- Control system
| Name | Specification |
| Electrical elements brand | CHNT / DELIXI |
| Control console |
